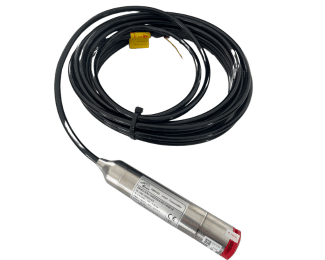

Hydrostatic Level Transmitter

  1. Home
  2. Products
  3. Level Meters
  4. Hydrostatic Level Transmitter
Category:

Hydrostatic Level Transmitter

The Hydrostatic Level Transmitter by Dimens is an advanced, high-precision device designed to measure liquid levels accurately. Utilizing a dipping-type design, the Hydrostatic Level Transmitter operates on the principle that the pressure exerted by a liquid increases linearly with the rise in liquid level. This robust transmitter is perfect for various applications, from monitoring well water levels to managing biogas plant liquids.

Working Principle

The Hydrostatic Level Transmitter is engineered to be immersed in the liquid being measured. As the liquid level rises, the pressure on the transmitter increases proportionally. This allows for precise level measurement with a high degree of accuracy. The Hydrostatic Level Transmitter by Dimens ensures that liquid levels are monitored reliably, whether in natural water bodies or industrial tanks.

Application Areas

The versatility of the Hydrostatic Level Transmitter makes it suitable for a wide range of applications:

  • Wells
  • Underground Waters
  • Rain Water Systems
  • Drinking Water Systems
  • Water Treatment Plants
  • Fuel Tanks
  • Oil Tanks
  • Biogas Plants
  • Dams
  • Lakes
  • Pools
  • Canalizations
  • Rivers
  • Sea Water and Aggressive Chemical Liquids (with PVDF body option)

Technical Properties

  • Brand: Dimens
  • Application Areas: Liquids
  • Measurement Range: 0 to 250 meters
  • Withstand Temperature: -20°C to +70°C
  • Body Material: 316 SS Stainless Steel (PTFE Optional)
  • Electrical Connection: Cable
  • Signal Output: 4-20mA, 0-10Volt, 0-5 Volt
  • Precision: ±0.5% T.S
  • Supply: 10-32 volt DC
  • Cable: PVC Standard, PUR, PE Silicon Optional
  • Sensor Diameter: 26.5 mm
  • Protection Class: IP68

Why Choose the Hydrostatic Level Transmitter by Dimens?

  • High Precision: The Hydrostatic Level Transmitter ensures accurate measurements with a precision rate of ±0.5% T.S. This level of accuracy is critical for maintaining proper levels in various applications.
  • Durable Materials: Constructed with 316 SS Stainless Steel, the Hydrostatic Level Transmitter offers robust performance. An optional PTFE material provides additional durability for harsher environments.
  • Versatile Applications: Suitable for a wide range of environments, the Hydrostatic Level Transmitter can handle everything from fresh water to aggressive chemical liquids when equipped with the PVDF body.
  • Reliable Performance: Designed to withstand temperatures ranging from -20°C to +70°C and protected with an IP68 rating, the Hydrostatic Level Transmitter ensures maximum durability and reliable operation under various conditions.

Detailed Benefits

  1. Enhanced Measurement Range: The Hydrostatic Level Transmitter by Dimens offers a measurement range from 0 to 250 meters. This wide range allows it to be used in both shallow and deep applications, ensuring flexibility and adaptability to various scenarios.
  2. Temperature Resilience: Operating in a wide temperature range from -20°C to +70°C, this transmitter is built to perform in extreme conditions. Whether it’s a hot summer day or a cold winter night, the Hydrostatic Level Transmitter remains reliable.
  3. Robust Construction: Made from 316 SS Stainless Steel, the Hydrostatic Level Transmitter is resistant to corrosion and physical wear. For environments that require even greater chemical resistance, an optional PTFE body is available, making it suitable for aggressive chemical liquids.
  4. Versatile Signal Outputs: The transmitter offers multiple signal output options, including 4-20mA, 0-10Volt, and 0-5 Volt, ensuring compatibility with various control systems and data acquisition setups. This flexibility allows for seamless integration into existing systems.
  5. IP68 Protection Class: With an IP68 protection rating, the Hydrostatic Level Transmitter is fully protected against dust and continuous immersion in water. This makes it ideal for applications where the transmitter will be submerged for extended periods.

Application Examples

  1. Water Treatment Plants: In water treatment plants, maintaining accurate water levels is crucial for efficient operation. The Hydrostatic Level Transmitter ensures precise measurement, aiding in the control and management of water treatment processes.
  2. Fuel and Oil Tanks: For fuel and oil storage, accurate level measurement is essential for inventory management and safety. The transmitter provides reliable readings, helping to prevent overflows and ensuring optimal storage conditions.
  3. Biogas Plants: In biogas plants, monitoring the levels of various liquids is vital for maintaining the efficiency of the production process. The Hydrostatic Level Transmitter’s high precision ensures that levels are accurately measured, contributing to the plant’s overall performance.
  4. Natural Water Bodies: Monitoring the levels of natural water bodies like lakes, rivers, and dams is important for environmental management and flood prevention. The transmitter’s wide measurement range and durability make it suitable for these applications.

The Hydrostatic Level Transmitter by Dimens is your ideal solution for reliable and precise liquid level measurement. Whether you need to monitor water levels in a well or manage chemical liquids in a biogas plant, this transmitter offers unparalleled performance and durability.

Order the Hydrostatic Level Transmitter by Dimens today and experience the difference in liquid level measurement accuracy and reliability. Contact us now to get started!

Contact Us

For more information about the Hydrostatic Level Transmitter or to place an order, please contact us. Our expert team is ready to assist you with all your liquid level measurement needs. Ensure your systems are running optimally with the reliable performance of Dimens products.
