High-Quality Pressure Switch DMS-XXS for Industrial Applications

  1. Home
  2. Products
  3. Pressure Switches
  4. High-Quality Pressure Switch DMS-XXS for Industrial Applications
Category:

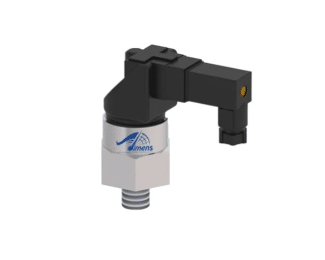

Introducing the Pressure Switch DMS-XXS, a top-tier solution engineered for precise pressure detection and control in various industrial applications across Turkey. This pressure switch is designed to monitor the pressure of the process it is installed in, providing reliable outputs when the pressure exceeds or falls below the set values. The DMS-XXS ensures accurate and consistent performance, making it an essential component for maintaining system safety and efficiency.

Key Features

  • Durable Construction: Built with a polypropylene body and NBR diaphragm (with Viton as an option), the DMS-XXS is designed for long-lasting performance in harsh industrial environments.
  • Reliable Mechanical Connection: Features an R1/4” mechanical connection, ensuring secure and stable installation.
  • High Compressive Strength: Capable of handling up to 1.5 times its maximum compressive strength, making it robust and reliable under high-pressure conditions.
  • Flexible Contact Options: Equipped with a 1xNO/NC contact, allowing for versatile integration into various control systems.
  • Extended Working Life: Designed for a working life of 10,000,000 cycles, offering unmatched reliability and durability.
  • Wide Operating Temperature Range: Efficiently operates within a temperature range of -40 to +60 °C, suitable for diverse environmental conditions.
  • Superior Protection: Rated IP65, the DMS-XXS is well-protected against dust and water ingress, ensuring dependable performance in challenging settings.

Technical Specifications

  • Body Material: Polypropylene
  • Diaphragm: NBR (Viton optional)
  • Plastic Parts: Polypropylene
  • O-Ring: NBR
  • Mechanical Connection: R1/4”
  • Max Compressive Strength: x1.5
  • Contact: 1xNO/NC
  • Working Life: 10,000,000 cycles
  • Operating Temperature: -40 to +60 °C
  • Protection Class: IP65

Measurement Areas

  • DMS00: (-)0.8 … (-)0.1 bar
  • DMS01p: 0.2 .. 1 bar
  • DMS05p: 0.5 .. 5 bar
  • DMS10p: 1 .. 10 bar
  • DMS20p: 2 .. 20 bar

Applications

The DMS-XXS Pressure Switch is ideal for a wide range of industrial applications, including but not limited to:

  • Process Control: Provides precise pressure monitoring and control in various industrial processes.
  • Safety Systems: Acts as a crucial component in safety shutdown systems, preventing overpressure conditions.
  • Pumps and Compressors: Ensures reliable pressure monitoring and control in pumping and compression systems.
  • HVAC Systems: Monitors and controls pressure in heating, ventilation, and air conditioning systems.
  • Water Treatment: Facilitates efficient pressure control in water and wastewater treatment processes.

Why Choose Dimens DMS-XXS?

Opting for the DMS-XXS means investing in a pressure switch that delivers high quality, durability, and precision. Its robust construction and advanced features make it an ideal solution for demanding industrial applications in Turkey. With an extended working life and superior protection class, the DMS-XXS stands out as a dependable choice for pressure monitoring and control.

For more information about the Pressure Switch DMS-XXS and how it can benefit your industrial applications, visit our company website or contact our sales team today.
