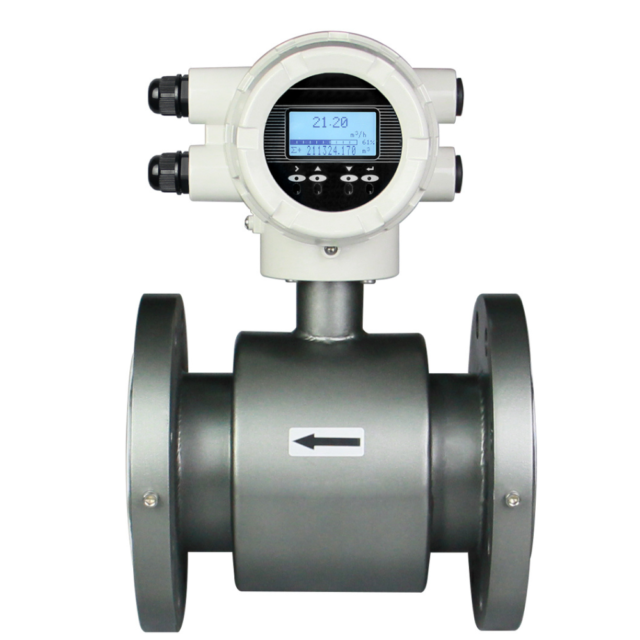

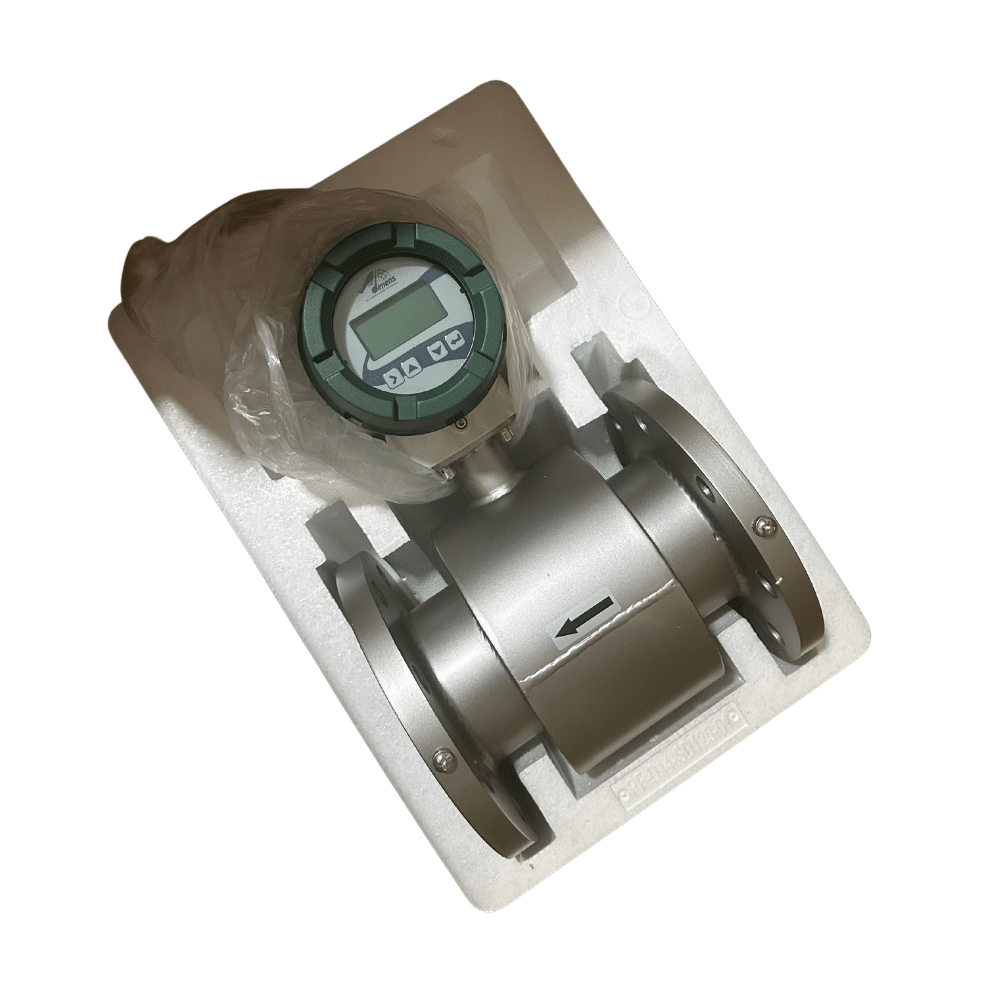

Electromagnetic Flow Meter

Electromagnetic flow meters, also known as mag meters, are precision instruments designed to measure the flow rate of conductive fluids. Utilizing Faraday’s Law of Electromagnetic Induction, these meters provide high accuracy and reliability, making them ideal for various applications, including water treatment, chemical processing, and industrial automation.

Key Features

• High Accuracy: Offers precise measurements with an accuracy of ±0.5% of the flow rate.
• Wide Range of Sizes: Available in sizes from DN 15 to DN 2000, catering to different application needs.
• Robust Construction: Designed with a stainless steel body and various liner materials to withstand harsh environments.
• No Moving Parts: Reduces maintenance needs and enhances durability.
• Bidirectional Measurement: Capable of measuring flow in both directions.
• Low Pressure Drop: Ensures minimal impact on the fluid flow.

Technical Specifications

• Measurement Range: 0.01 to 10 m/s
• Liner Materials: PTFE, PFA, Neoprene, Hard Rubber
• Electrode Materials: Stainless Steel, Hastelloy, Titanium, Platinum
• Communication Protocols: Modbus, HART, Profibus
• Power Supply: 85-265V AC, 18-36V DC
• Protection Class: IP65, IP67, IP68

Working Principle

Electromagnetic flow meters operate based on Faraday’s Law of Electromagnetic Induction. When a conductive fluid passes through a magnetic field generated by the flow meter, it induces a voltage proportional to the flow velocity. This voltage is measured by electrodes placed in the flow meter, and the flow rate is calculated based on this measurement. The absence of moving parts ensures minimal wear and tear, leading to longer service life and reduced maintenance.

Applications

• Water and Wastewater: Efficient monitoring and control of water distribution and treatment processes, ensuring compliance with regulatory standards.
• Chemical and Petrochemical: Suitable for aggressive and corrosive fluids, providing accurate flow measurements in harsh environments.
• Food and Beverage: Hygienic design options available for safe and accurate flow measurement in food processing, ensuring product quality and safety.
• Pulp and Paper: Reliable in measuring slurry and other viscous materials, optimizing production processes and reducing downtime.
• Pharmaceuticals: Accurate measurement of liquid medications and solutions, ensuring precision in formulation and production.

Installation and Maintenance

Electromagnetic flow meters are relatively easy to install, requiring minimal straight pipe lengths upstream and downstream of the meter. They can be installed in both horizontal and vertical orientations, provided the pipe is always full of the fluid being measured. Maintenance is straightforward due to the lack of moving parts, which reduces the risk of mechanical failure. Periodic calibration and inspection are recommended to ensure continued accuracy and performance.

Benefits

• Enhanced Accuracy and Reliability: Consistent and precise measurements even in challenging conditions.
• Maintenance-Free: Absence of moving parts reduces wear and tear, leading to lower maintenance costs.
• Versatile: Suitable for a wide range of industries and applications.
• Easy Integration: Compatible with various communication protocols for seamless integration into existing systems.
• Cost-Effective: Long service life and low maintenance requirements reduce overall operational costs.

Advanced Technology

The electromagnetic flow meters by Dimens are equipped with advanced technology that ensures precise measurement even in the most challenging conditions. The integration of modern communication protocols like Modbus, HART, and Profibus allows for seamless data transfer and system integration, making these meters suitable for sophisticated industrial environments.

Customization Options

Dimens offers a variety of customization options to meet specific industry requirements. From different liner materials to various electrode materials, clients can choose the best combination for their applications. This flexibility ensures optimal performance and longevity of the flow meters in diverse operational conditions.

Environmental Impact

Electromagnetic flow meters are also known for their environmentally friendly attributes. By providing accurate measurements, these meters help in reducing waste and optimizing the use of resources. In water and wastewater management, for example, precise flow measurement is crucial for efficient treatment processes and compliance with environmental regulations.

Conclusion

Dimens’ electromagnetic flow meters offer advanced technology for precise fluid flow measurement. Their robust design, high accuracy, and versatility make them an excellent choice for diverse industrial applications. With easy installation, minimal maintenance, and customizable options, these flow meters provide a reliable solution for your measurement needs.

About Dimens

Dimens, a brand of RST Measurement Control Instruments and Automation Services, specializes in providing high-quality measurement and control solutions. With a focus on precision and reliability, Dimens products are designed to meet the demanding needs of various industries. Our commitment to innovation and quality ensures that our clients receive the best products and services available.
